Savantec 6.35-10.31 high-speed steel one pass deburring Single edged deburring tool for inner hole
product description
Deburring holes is usually a costly and time-consuming operation. The back sides of holes are particularly difficult, as they are frequently inaccessible with conventional deburring tools.
The BO deburring tool, often referred to as a burr removal tool or deburring equipment, is a specialized tool used to remove burrs from the surface of workpieces after machining operations. Burrs are small protrusions or sharp edges that can form on metal parts during cutting, drilling, grinding, or other machining processes.
Savantec deburring Tool Products offers you a better way to get rid of those troublesome burrs. Savantec deburring tools remove burrs on the front, back, or both sides of drilled holes in one pass. . . fast, easy, and economical solutions for your hole-deburring problems!
The burr off tool comes in both inches and metric sizes,ranging from holes as small as 0.8mm to 5.56mm. Savantec Tools have both single and double edges deburring tools, as well as titanium nitride coating and custom measurements as per request. Contact Savantec Tools for competitive pricing. In portable power tools – no need for replicated fixtures, and no special operator skills are required.
product specification
| Standard tool | Unit:mm | |||||||
| ORDER CODE | DRILL HOLE | SHANK D | SHAND d | OAL | DIM.A | DIM.B | DIM.D | Recommand REV |
| SV-BO-0.8 | 0.8-0.9 | 3 | 0.7 | 45 | 1 | 1.5 | 1.05 | 1800 |
| SV-BO-0.9 | 0.9-1.0 | 3 | 0.8 | 45 | 1 | 1.5 | 1.2 | 1800 |
| SV-BO-1.0 | 1.0-1.1 | 3 | 0.9 | 45 | 1 | 1.5 | 1.35 | 1800 |
| SV-BO-1.1 | 1.1-1.2 | 3 | 1 | 45 | 1 | 1.5 | 1.5 | 1800 |
| SV-BO-1.2 | 1.2-1.3 | 3 | 1.1 | 45 | 1 | 1.5 | 1.65 | 1800 |
| SV-BO-1.3 | 1.3-1.4 | 3 | 1.2 | 45 | 1 | 1.5 | 1.8 | 1800 |
| SV-BO-1.4 | 1.4-1.5 | 3 | 1.3 | 45 | 1 | 1.5 | 1.95 | 1800 |
| SV-BO-1.5 | 1.5-1.6 | 3 | 1.4 | 50 | 2 | 2.5 | 2.1 | 1500 |
| SV-BO-1.6 | 1.6-1.7 | 3 | 1.5 | 50 | 2 | 2.5 | 2.25 | 1500 |
| SV-BO-1.7 | 1.7-1.8 | 3 | 1.6 | 50 | 2 | 2.5 | 2.4 | 1500 |
| SV-BO-1.8 | 1.8-1.9 | 3 | 1.7 | 60 | 2 | 2.5 | 2.55 | 1500 |
| SV-BO-1.9 | 1.9-2.0 | 3 | 1.8 | 60 | 2 | 2.5 | 2.65 | 1500 |
| SV-BO-2 | 2.0-2.2 | 3 | 1.9 | 60 | 2 | 2.5 | 2.8 | 1500 |
| SV-BO-4 | 2.2-2.4 | 3 | 2 | 80 | 2 | 2.5 | 3.15 | 1500 |
| SV-BO-5 | 2.4-2.6 | 3 | 2.1 | 80 | 2 | 2.5 | 3.45 | 1500 |
| SV-BO-6 | 2.6-2.8 | 3 | 2.2 | 80 | 2 | 2.5 | 3.7 | 1500 |
| SV-BO-7 | 2.8-3.18 | 2.75 | 101.6 | 3.18 | 4.45 | 4.00 | 1200 | |
| SV-BO-8 | 3.18-3.55 | 3.15 | 101.6 | 3.18 | 4.45 | 4.34 | 1200 | |
| SV-BO-9 | 3.55-3.96 | 3.58 | 101.6 | 3.18 | 4.45 | 4.74 | 1200 | |
| SV-BO-10 | 3.96-4.36 | 3.9 | 101.6 | 3.18 | 4.45 | 5.54 | 1200 | |
| SV-BO-11 | 4.36-4.74 | 4.34 | 101.6 | 3.18 | 4.45 | 5.94 | 1200 | |
| SV-BO-12 | 4.74-5.15 | 4.72 | 101.6 | 3.18 | 6.22 | 6.35 | 1200 | |
| SV-BO-13 | 5.15-5.56 | 5.13 | 101.6 | 3.18 | 6.22 | 6.78 | 1200 | |
| SV-BO-14 | 5.56-5.94 | 5.54 | 101.6 | 6.48 | 6.22 | 7.92 | 800-1000 | |
| SV-BO-15 | 5.94-6.35 | 5.92 | 101.6 | 6.48 | 6.22 | 8.33 | 800-1000 | |
| SV-BO-16 | 6.35-6.75 | 6.32 | 101.6 | 6.48 | 6.22 | 8.71 | 800-1000 | |
| SV-BO-17 | 6.75-7.13 | 6.73 | 101.6 | 6.48 | 6.22 | 9.12 | 800-1000 | |
| SV-BO-18 | 7.13-7.54 | 7.11 | 101.6 | 6.48 | 6.22 | 9.53 | 800-1000 | |
| SV-BO-19 | 7.54-7.95 | 7.52 | 101.6 | 6.48 | 6.22 | 9.91 | 800-1000 | |
| SV-BO-20 | 7.95-8.33 | 7.92 | 101.6 | 7.24 | 6.48 | 10.31 | 800-1000 | |
| SV-BO-21 | 8.33-8.71 | 8.31 | 101.6 | 7.24 | 6.48 | 10.72 | 800-1000 | |
| SV-BO-22 | 8.71-9.11 | 8.69 | 101.6 | 7.24 | 6.48 | 11.1 | 800-1000 | |
| SV-BO-23 | 9.11-9.52 | 9.09 | 101.6 | 7.24 | 6.48 | 11.51 | 800-1000 | |
| SV-BO-24 | 9.52-9.90 | 9.5 | 112.7 | 8 | 6.48 | 12.7 | 800-1000 | |
| SV-BO-25 | 9.90-10.31 | 9.88 | 112.7 | 8 | 6.48 | 13.08 | 600 | |

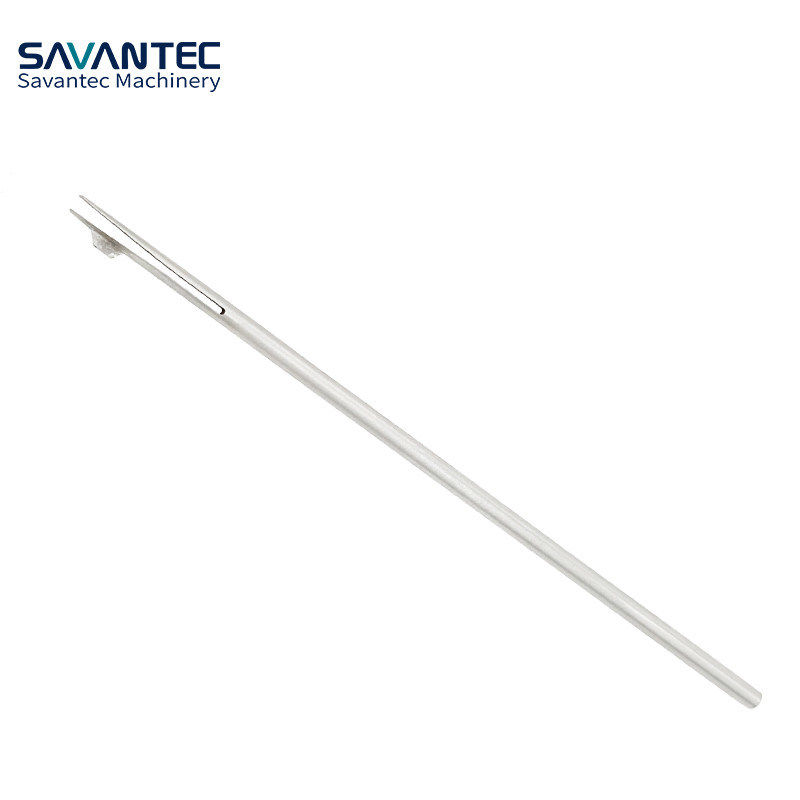

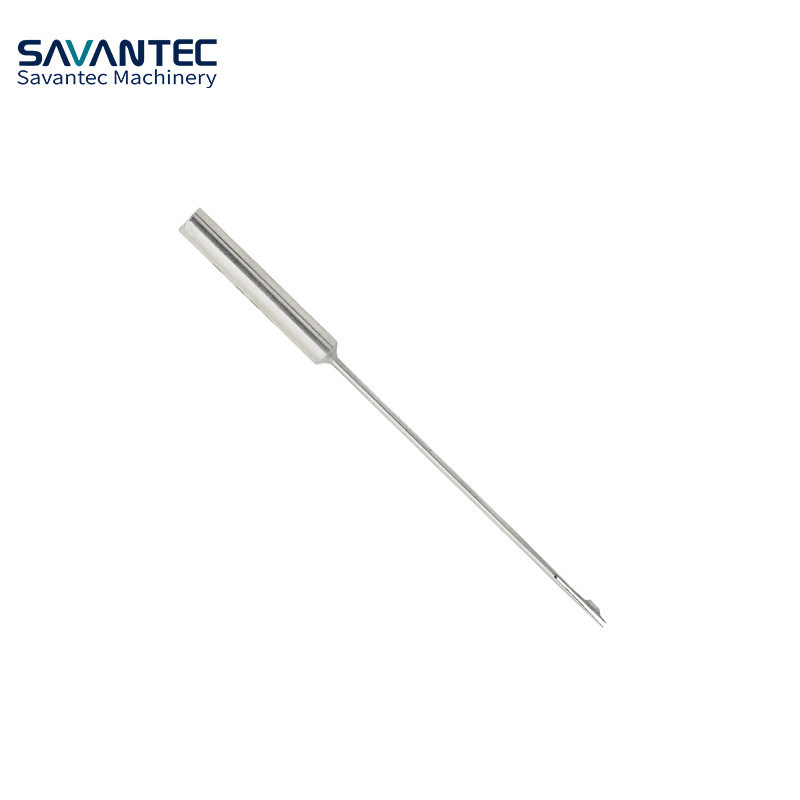

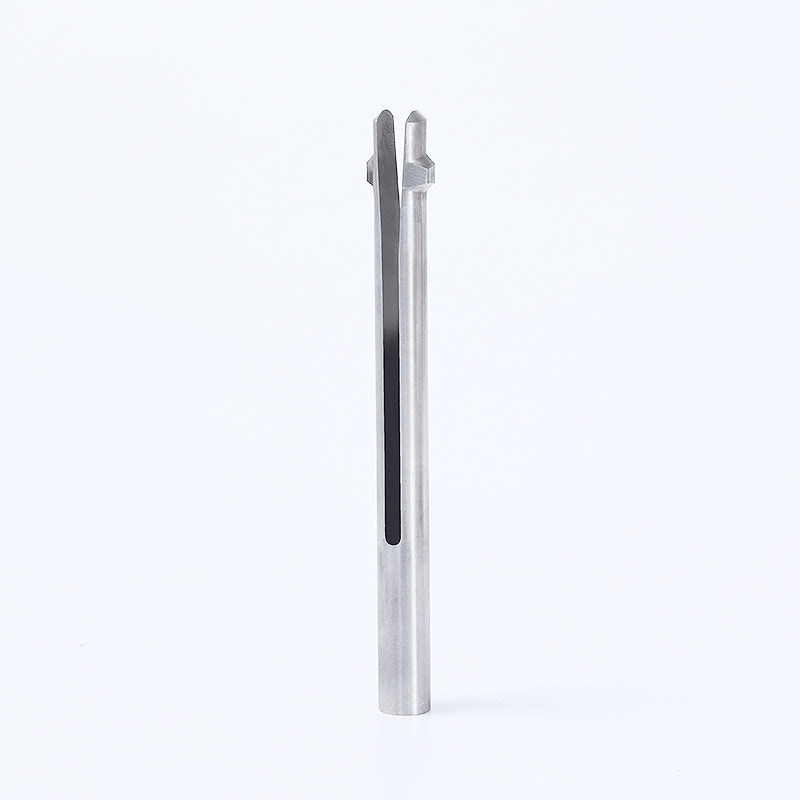

product image
